Product Details:

Place of Origin: China
Brand Name: GALLONPRENE
Certification: ISO 9001/ISO14001
Model Number: GP610

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: 2.89~4.65USD/kg
Packaging Details: 25kg/bag
Supply Ability: 40 tons per day
Get Best Price Contact Now

Detail Information

Color: Custom-make Hardness: Custom-make
OEM: Acceptable Advantage: High Temperature Resistance Performance & Easy To Process& High Cost-effective
Processing Method: Extrusion Molding Uv Resistance: Excellent
Flexibility: High Material Type: Thermoplastic Vulcanizate
Applications: Automotive, Electrical, Industrial Compression Set: Excellent
Highlight:

Compression Resistance TPV Material

,

Eco Friendly TPV Material

,

Sustainable TPV Rubber Granules

Product Description

ISO14001 Compression Resistance TPV Material - Eco Friendly and Sustainable
Product Specifications
Attribute Value
Color Custom-made
Hardness Custom-made
OEM Acceptable
Advantages High temperature resistance, easy to process, cost-effective
Processing Method Extrusion Molding
UV Resistance Excellent
Flexibility High
Material Type Thermoplastic Vulcanizate
Applications Automotive, Electrical, Industrial
Compression Set Excellent
Product Description

Sungallon specializes in high-quality TPV raw materials with exceptional temperature and compression resistance properties for demanding applications.

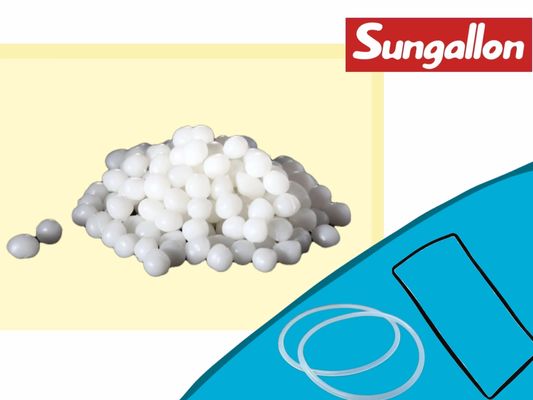

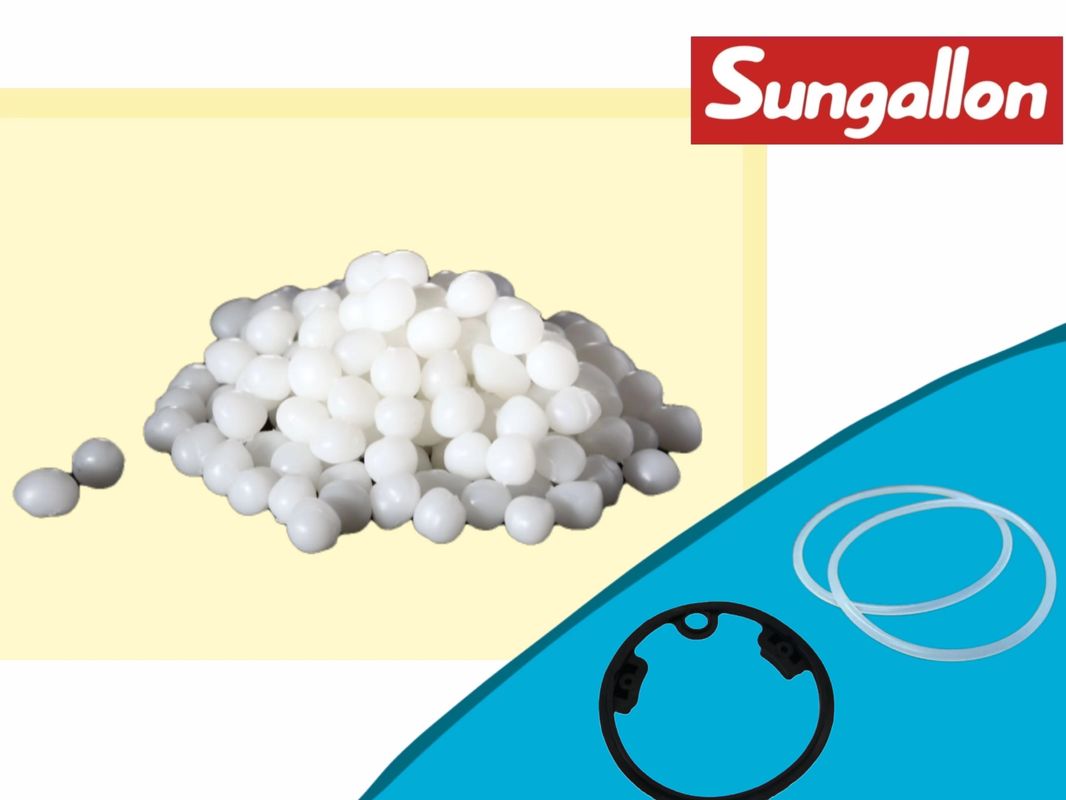

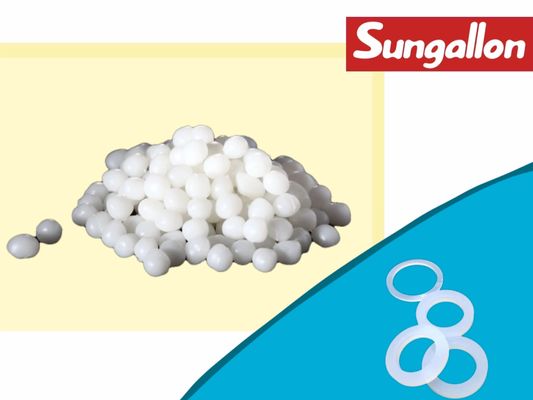

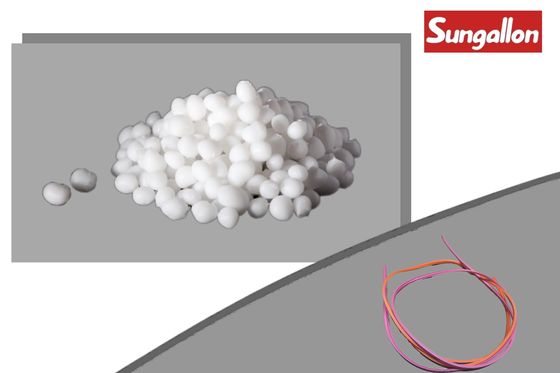

Our TPV material is engineered for high temperature resistance applications. The standard material appears white with a slight yellow tint, but can be custom-colored to meet specific requirements, including black and other colors. Suitable for both injection and extrusion processes.

Applications

Ideal for high temperature resistance applications including:

  • Seals and gaskets
  • Overmolding applications
  • Co-extrusion with PP materials
Technical Specifications
Test Term Test Method Unit GP610-60 GP610-90
Hardness ASTM D 2240 Shore A 60 (15S) 90 (15S)
Specific Gravity ASTM D792 / 0.97 0.98
Tensile Strength ASTM D412 Mpa 4.1 7.9
Elongation at Break ASTM D412 % 450 650
Compression Set (23℃22h) ASTM D 395 % 18 37
Chemical Safety

Complies with ROHS, REACH, BPA free, Phthalates free, Halogen free, EN 71 part 3 standards.

Processing Conditions

Recommended processing temperature range: 165~220℃, not exceeding 230℃.

The information presented herein is true and accurate to the best of our knowledge, but without any guarantee unless explicitly given. Since the conditions of use are beyond our control we disclaim any liability, including for patent infringement, incurred in connection with the use of these products, data or suggestion.
About Sungallon

Sungallon's manufacturing and corporate headquarters are located in Guanlan, Shenzhen, with convenient transportation access. Our wholly-owned subsidiary, Sungallon Plastic (Heyuan) Company Limited, serves as our production base with over 40,000 square meters of space and approximately 110 employees.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 0 ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 1
Production Capabilities

Our facility features 16 state-of-the-art, fully automated production lines (including European and Japanese equipment) plus 4 dedicated sample production lines, enabling us to handle diverse order requirements with an annual capacity of 40,000 tons.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 2 ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 3
Quality Assurance

We maintain a comprehensive suite of product testing and inspection tools, supported by an R&D team led by seasoned experts from prestigious academic institutions to ensure all product specifications are met.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 4 ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 5
Company Achievements

With multiple patent certifications and academic partnerships, we have established a distinguished reputation in the TPE/TPR industry through 15+ years of innovation and growth.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 6 ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 7
Packaging & Shipping

We offer flexible packaging options in 20 kg and 25 kg bags, with thorough quality inspections before shipment handled by professional loading teams.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 8 ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 9
Sample Preservation

Our facility includes specialized sample storage areas that can preserve product samples for 1-5 years.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 10
Product Exhibition

Our 1000+ square meter exhibition space showcases our complete range of TPE/TPR products.

ISO14001 Compression Resistance TPV Material Eco Friendly And Sustainable 11
Why Choose Sungallon

With roots dating back to 1988 as an LG SBS polymer distributor, we established our own production facilities in 2005. Our Shenzhen headquarters and 2014 revenue of $19.8 million confirm our position as China's leading Thermoplastic Elastomer manufacturer.

Our state-of-the-art twin screw compounding equipment produces materials ranging from gels to polypropylene hardness, with annual capacity exceeding 40,000 tons. Our dedicated team of 8 R&D engineers and well-equipped lab enables us to develop custom solutions meeting functional, cost and safety requirements.

Certified to ISO 9001, ISO 14001 and multiple OEM standards, we adhere to strict substance restrictions and maintain contamination-free production. We partner with SGS, UL-STR, and Intertek for compliance testing to EN71-ASTM F963 and client-specific standards.

While based in China, we serve global clients through export sales channels and an international distributor network.

Frequently Asked Questions
Are you a trading company or a manufacturer?

We are a professional manufacturer of TPE/TPR materials.

About samples

We provide 5KG free samples with freight collect.

About quality control

Our engineers conduct laboratory tests during production, with QC tests before delivery. We store production samples for 3-5 years.

About color matching

We can match colors according to Pantone or RAL color cards.

About delivery time

Typically 3 days for samples and 7 days for orders. Specific timelines vary by order size - please contact customer service for details.

About payment methods

We accept TT, credit card, LC, and other payment methods. Contact customer service for special arrangements.
